Going UP? Extrusions for Escalators and Elevators

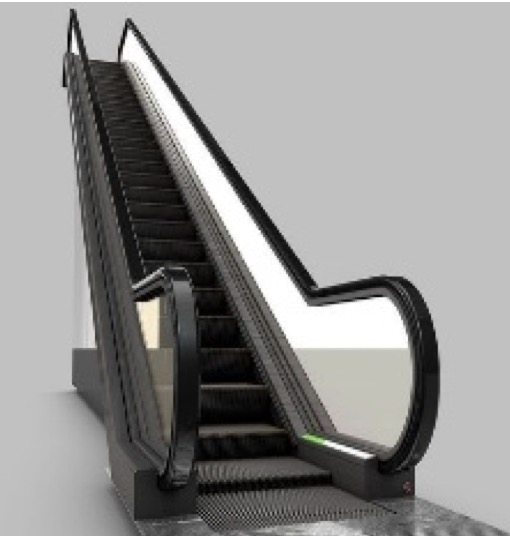

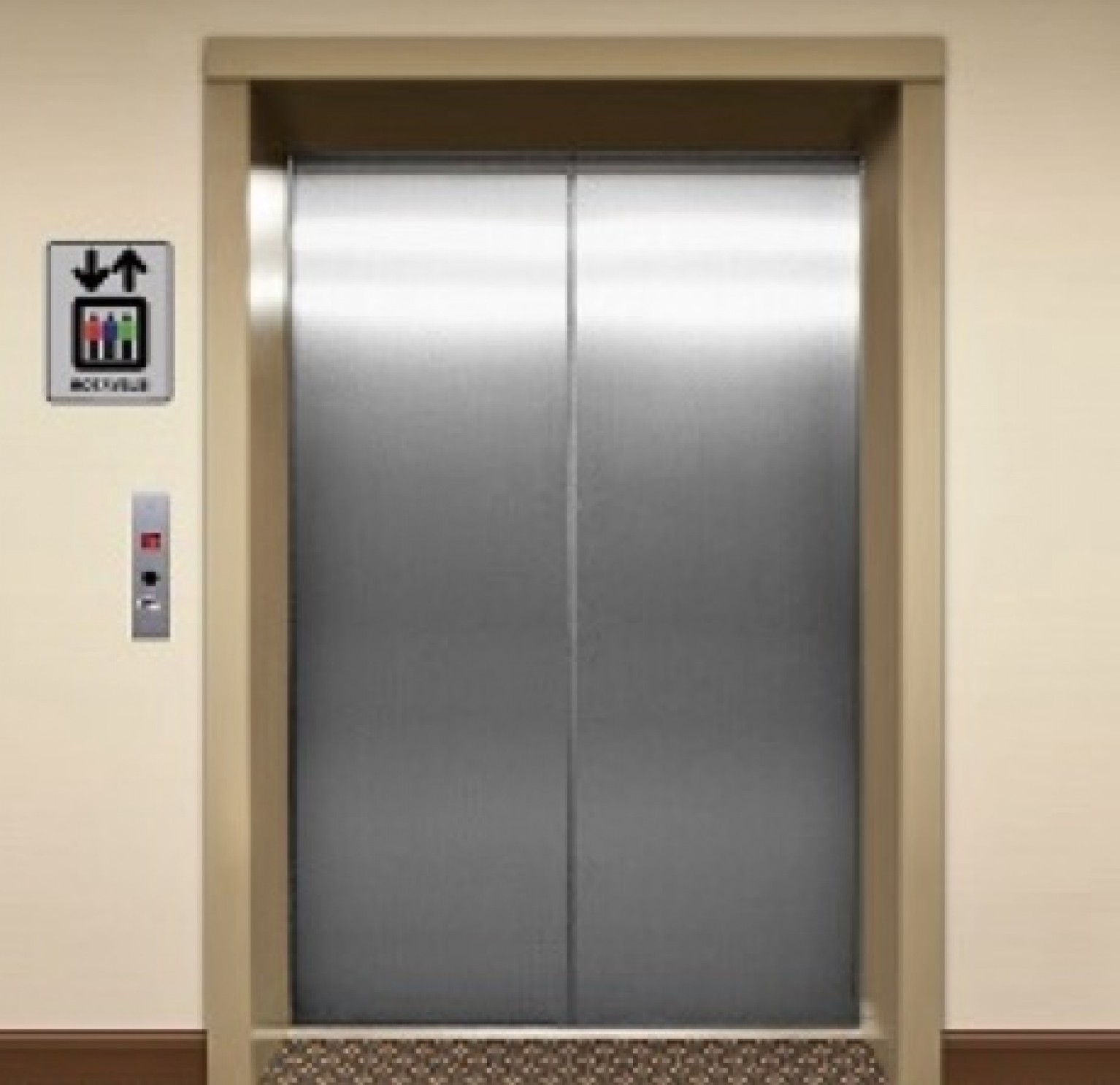

You probably don’t think of escalators and elevators as a form of transportation but they play a key role in our lives and help us get from here to there with little effort. Examples of parts we can extrude for escalators are handrails, pads and gaskets and for elevators; astragals, blocks and plates. We have the capability to create your custom quality product to your desired specifications and quantities. At CRE we can help you GO PLACES!

By Central Rubber Extrusions of Illinois|2017-12-11T19:26:52+00:00July 14th, 2017|Categories: Information|
